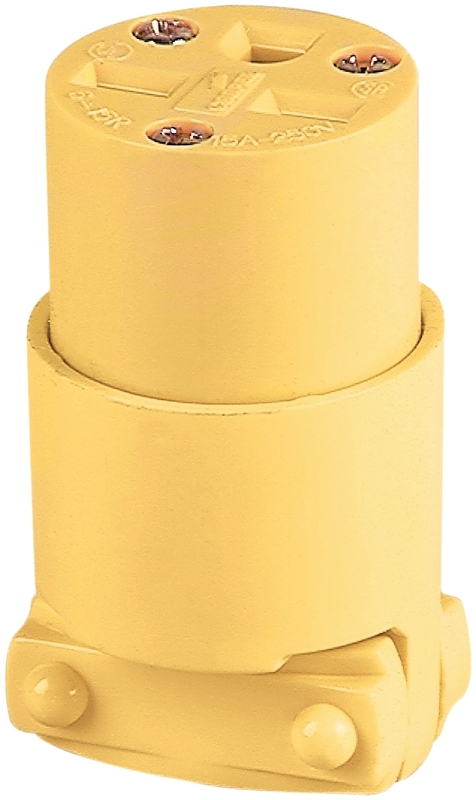

Eaton Wiring Devices 4227-BOX Electrical Connector, 2 -Pole, 15 A, 250 V, NEMA: NEMA 6-15, Yellow

Eaton Wiring Devices

Eaton Wiring Devices 4227-BOX Electrical Connector, 2 -Pole, 15 A, 250 V, NEMA: NEMA 6-15, Yellow

Eaton Wiring Devices 4227-BOX Electrical Connector, 2 -Pole, 15 A, 250 V, NEMA: NEMA 6-15, Yellow
  • Cable/Wire Size: 1/4 to 21/32
  • Color: Yellow
  • Current Rating: 15
  • Dimensions: 2.61 in L x 1.35 in W
  • Grounding Type: Grounded
  • Model #: 4227-BOX
  • UPC #: 032664332609
  • SKU: 9233149

Your shopping list will be used for pickup in-store

Product Details

Terminals in individual chambers to positively insulate conductors. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out, ready for wiring. Nylon Kwiklok features patented twist-actuated internal cord clamp, reduces installation time. Meets all UL 498 requirements. Yellow color.

Key Features

  • Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
  • Terminal screws backed out ready for wiring
  • Terminals in individual chambers to positively insulate conductors
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers

Item Specifications

Cable/Wire Size1/4 to 21/32
ColorYellow
Current Rating15
Dimensions2.61 in L x 1.35 in W
Grounding TypeGrounded
MaterialThermoplastic/Vinyl
NEMA ConfigurationNEMA 6-15
Number of Poles2
Number Of Wires3
Operating Temperature-20 to 60
TypeStraight Body
Voltage Rating250
