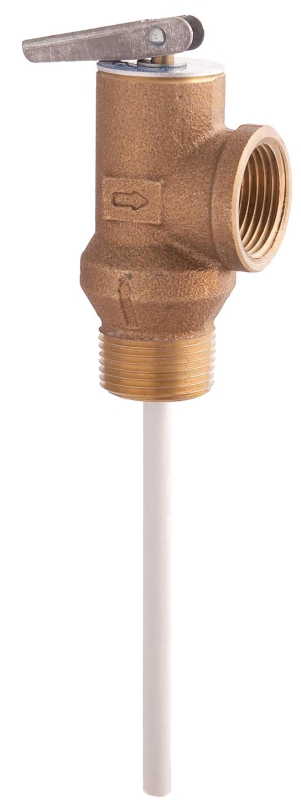

Watts 100XL Series 0066100 Relief Valve, 3/4 in, MNPT x FNPT, Bronze Body
- Body Material: Bronze
- Connection Type: MNPT x FNPT
- Dimensions: 1-3/4 in W x 7-1/2 in H
- Nominal Size: 3/4 in
- Operating Pressure: 75 to 150 psi
- Model #: 0066100
- UPC #: 098268000016
- SKU: 1816016
Your shopping list will be used for pickup in-store
Product Details
Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. It features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Model 100XL-8 is also available with 8 in (200 mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature relief is 210 deg F (99 deg C), Pressure relief range is 75 to 150 psi (5.2 to 10.3 bar). Standard pressure settings are 75, 100, 125 or 150 psi (5.27, 7.03, 8.79 or 10.55 bar).Key Features
- Thermo-bonded, non-metallic protective coating on thermostat
Item Specifications
| Body Material | Bronze |
|---|---|
| Connection Type | MNPT x FNPT |
| Dimensions | 1-3/4 in W x 7-1/2 in H |
| Nominal Size | 3/4 in |
|---|---|
| Operating Pressure | 75 to 150 psi |
| Temperature Rating | 210 deg F |
MORE DETAILS:
- Watts_0066132_Catalog.pdf
- Watts_0066100_Specification_Sheet.pdf
- Application: For water heaters
